Pneumatic Killing Roller Type

Pneumatic Killing Roller Type

Product Details:

X

Product Description

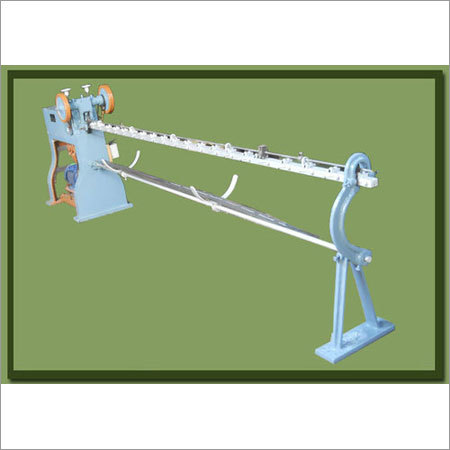

Wire Straightening & Cutting Machine :-

  • Suitable for straightening and cutting of electric welding rods, cloth hanger wire, electrical parts, Structural Steel of Round / TMT / TOR - KARI BAR etc.
  • Any length of wire can be cut without automatic attachment
  • Straightening function performed by five straightening blocks which are adjustable
  • Automatic cutting gauge for required length can be provided

Specifications:

Model:

BWM-4

BWM-6

BWM-8

BWM-10

BWM-13

BWM-15

BWM-16

BWM-20

BWM-25

Thickness of wire (mm):

1.6 - 4.0

3.0 - 6.0

3.5 - 8.0

5.0 - 10

8.0 - 12.7

10 - 15

1.2 - 16.0

1.6 - 20

18 - 25

Length of wire to be cut automatically with the standard automatic cutting gauge (Inch) :

2-100

6 - 250

12 - 500

36 - 500

72 - 500

72 - 500

72 - 500

72 - 500

72 - 500

Speed (feet per min.):

90

100

120

100

80

70

60

60

50

Motor (HP):

3

5

7.5

10

15 & 5

15& 5

20 & 7.5

25 & 10

30, & 15

Net weight (Kg):

400

600

825

950

1050

1450

1450

2500

3000

Gross weight (Kg):

550

700

750

800

1000

1500

1750

3000

3700
