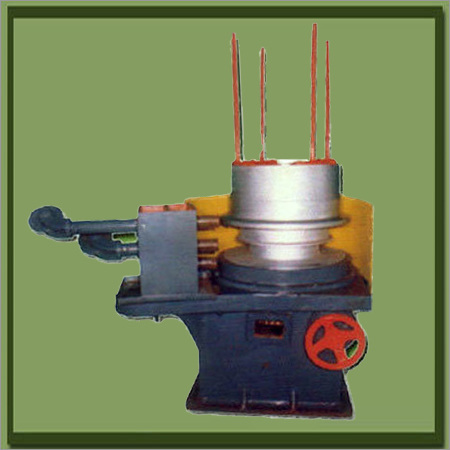

Close grain cast iron made main body with base and generally built with space walls and ribs for proper alignment and rigidity. Drawings block constructed in specially graded casting, hard metalised and ground at wire line to increase abrasion resistance. Phosphorus Bronze gear and high carbon steel worm immersed in oil bath reservoir in the machine body to absorb its heat of action while in load to maintain a long life of gear set. Heavy duty ball and roller Bearing fittings for shafts and worm with the provision for oil seals. Water cooled Die and Block, water circulation arrangements for cooling the drum and intensive water cooling arrangements for die box. The machine should be provided with necessary Guards.
Technical Specifications:
|
Model 1 |
Model 2 |
Model 3 |
Model 4 |
Model 5 |
|
(Extra Heavy) |
(Heavy) |
(Heavy) |
(Medium) |
(Fine) |
No of Block |
1 3 |
1 6 |
1 7 |
1 6 |
1 9 |
Dia of Drum |
750mm |
610mm |
560mm |
460mm |
305mm |
Material to be Drawn |
M.S. H.C Copper |
DO |
DO |
DO |
DO |
Inlet Wire Size |
12mm |
8mm |
6mm 5.5mm |
4mm |
2.6mm |
Finished Wire Size |
6mm |
3.37mm |
2.2mm 2.0mm |
1.68mm |
0.7mm |
Finishing Speed (Machine R.P.M.) |
60 |
100 |
150 |
175 |
540 |
H.P. Required |
1st 50 HP |
1st 40 HP |
1st 30 HP |
1st 15 HP |
1st 10 HP |
|
2nd 45 HP |
2nd 30 HP |
2nd 25 HP |
2nd 15 HP |
2nd 7.5 HP |
|
3rd 35 HP |
3rd 25 HP |
|
|
|
|
|
Rest 20 HP |
Rest 20 HP |
Rest 10 HP |
Rest 5 HP |
Block Weight (Approx) |
1850 Kgs. |
1500 Kgs. |
1300 Kgs. |
800 Kgs. |
550 Kgs. |
