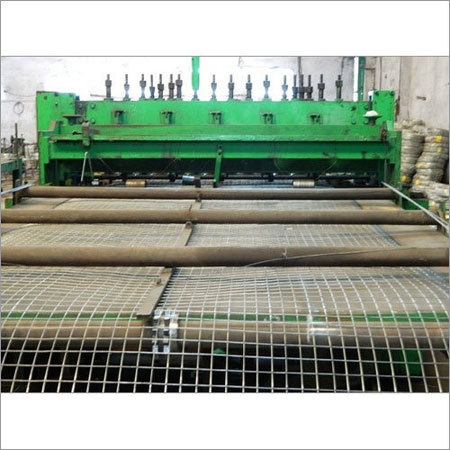

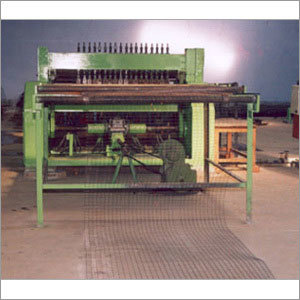

Welded Wire Mesh Making Machine

Get a Price/Quote

Product Details:

Product Type Welded Wire Mesh Making Machine
Voltage 480 Volt (v)
Power 5 Horsepower (HP)
Usage Other
Color Green
Warranty 1 years
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Welded Wire Mesh Making Machine Price And Quantity

Minimum Order Quantity 1 Piece

Welded Wire Mesh Making Machine Product Specifications

Color Green
Voltage 480 Volt (v)
Usage Other
Power 5 Horsepower (HP)
Product Type Welded Wire Mesh Making Machine
Warranty 1 years

Product Description

Due to our in-depth knowledge and expertise in this domain, we are providing our esteemed customers a huge range of Welded Wire Mesh Making Machine. The provided machinery for wire mesh is manufactured with the usage of premium quality material which quality assured and latest technology. In addition to this, our provided machinery for wire mesh is strictly examined by our quality checkers on factors of quality for make sure its quality. Our valuable customers can buy this Welded Wire Mesh Making Machine only at pocket suited price.

TECHNICAL DETAILS :-

Model No. : SI - 12. / SI - 15. / SI -25.
Max. Welded Width. : 1250 M.M./ 1550 M.M./ 2550M.M.
Line Wire Spacing. : 25 M.M. to 150M.M.
Cross Wire Spacing : 25 M.M. to 150M.M.
Range of Wires. : 1.6M.M.to 4.5M.M.
Max .Welding Speed : 80/70/60 Stroke Per Minute.
Power Load. : 200 K. V. A. / 250 K.V. A./ 350 K.V.A.

Necessary Equipments to be supplied With the Machine :-

Welding Transformer of required quantity as well as required K.V.A., D.C. Motor with Reduction Gear-Box, Magnet Break, D.C. Drive Panel, Automatic Wire Straightening-cum-cutting Machine with Electric Motor & heavy duty reduction gear-box, Line Wire Divider, Line Wire Guider, Repairing Gun (Spot Welder) with Transformer, required Nos. of wire stand and Separate Coiler to be supplied along with the plant.
